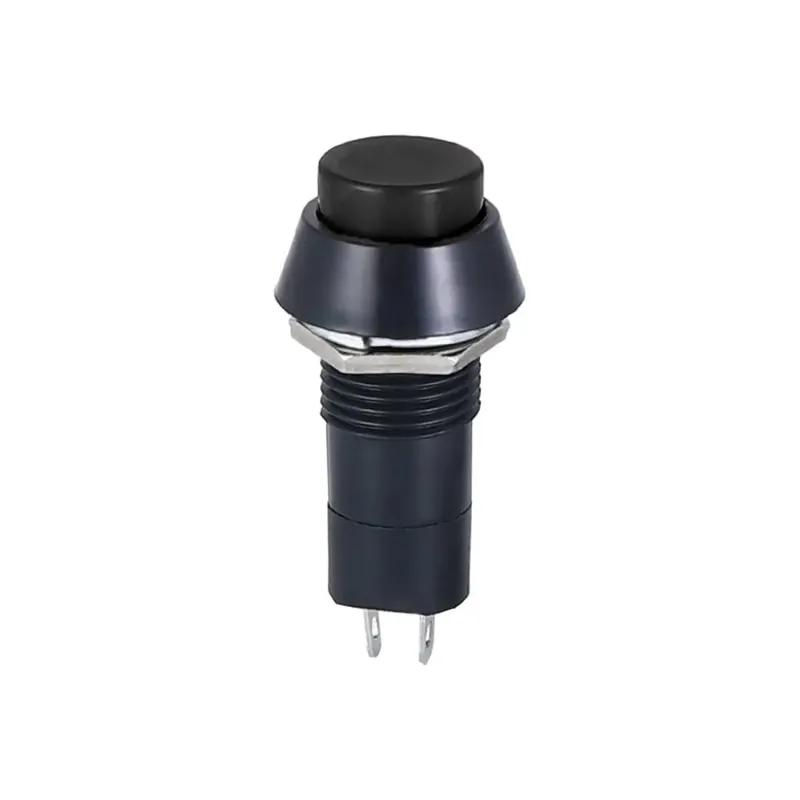

12mm Push Button Latching ON-OFF 3A PBS-11A - BLACK

The PBS-11A is a commonly used latching-type push button switch. When pressed, it switches to the ON position and stays there. Pressing it again turns it OFF. It maintains its state until pressed again.

Specification:

• Type: Push Button Switch
• Model: PBS-11A
• Contact Type: 1 NO (Normally Open)
• Voltage: AC 250V 3A

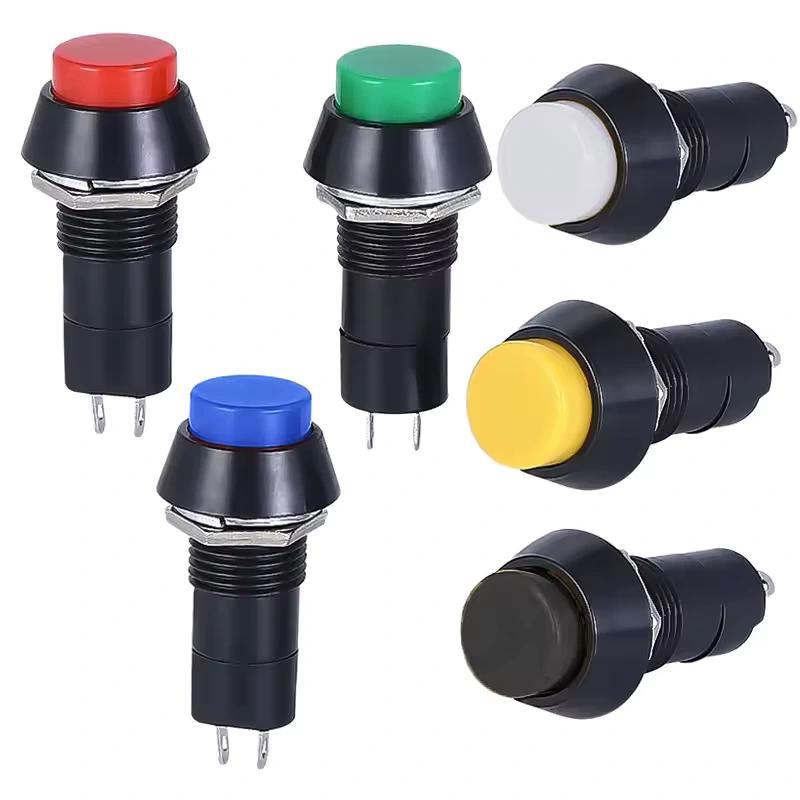

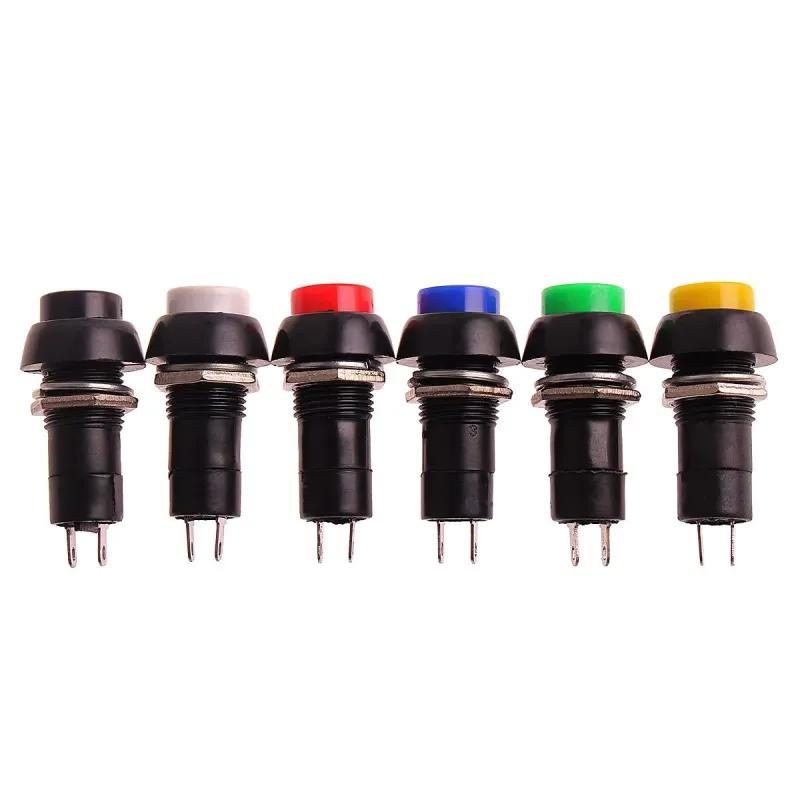

• Color: red / greed / yellow / white/ blue
• Terminals: 2 Pins
• Switch height: 32.5mm
• Button diameter: 12mm
• Fixed aperture: 16.5mm
• Operation temperature: -25 to 55℃
• Operation humidity: 45 to 85% RH
•
• PBS-11A self-locking function: press to close and press again to open
• PBS-11B reset function: press to close and release to open

A

Package Included:

• 1x PBS-11A Push Button Switch 240VAC 3A
