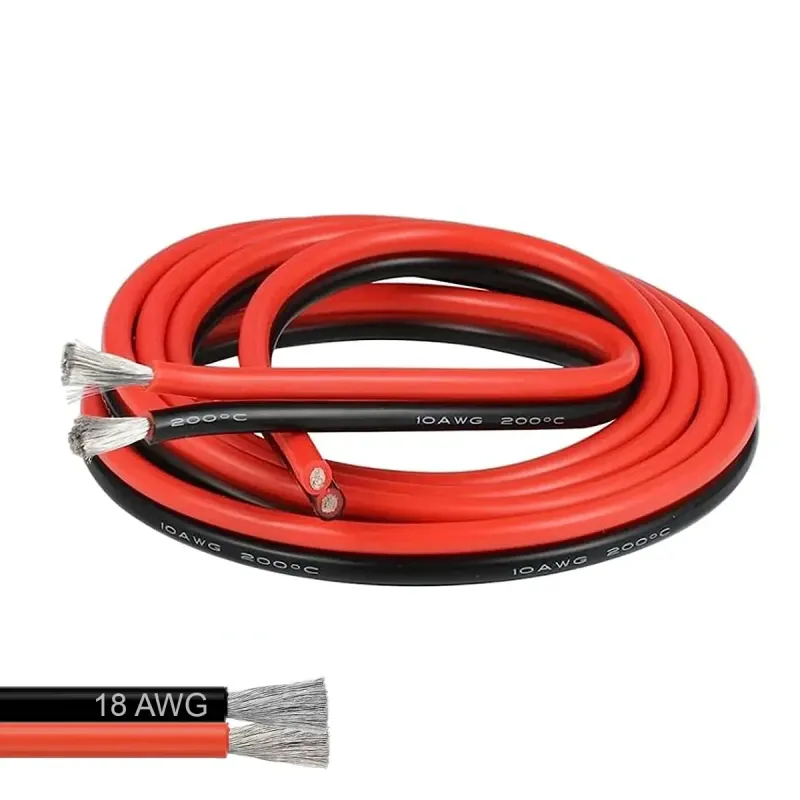

18 AWG 2 Conductor Parallel Flexible Silicone Wire Cable Red-Black - 1 Meter

The flexible silicone wires are widely used in electronics, model wiring harnesses, electrical appliances, equipment internal connecting wires, large transformers and lamps, motor lead wires, and other connecting wires.

Are there any advantages of the product?

The wire is made of silicone insulation and tinned copper core, offering excellent wear resistance, corrosion resistance, and flame retardant performance. It also provides strong electrical conductivity and durable stability.

How to use it?

Choose the appropriate silicone wire to connect with your equipment and power supply. It is easy to peel and cut.

What should I notice?

Silicone wire can withstand a certain amount of bending and stretching but excessive bending should be avoided to maintain electrical conductivity and performance.

These wires are commonly used in high-temperature environments for electronics or lighting, model wiring, household appliances, internal wiring of equipment, transformers, large lamps, instruments, motor connections, and general electrical wiring.

• Core material: Tinned copper wire
• Sheath material: Silicone rubber
• Maximum wire outer diameter: 6.0 mm
• Test voltage: 2000V
• Outer diameter tolerance: ±0.1 mm
• Conductor types: Tinned, nickel-plated, silver-plated, or gold-plated
• Applications: Electronics, appliances, lighting, equipment, transformers, motors, and automotive wiring

10 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Inner core: 1050 strands
• Outer diameter: 5.5 mm

12 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Core: 680 strands
• Outer diameter: 4.5 mm

14 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Core: 400 strands
• Outer diameter: 3.5 mm

16 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Core: 252 strands
• Outer diameter: 3.0 mm

18 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Core: 150 strands
• Outer diameter: 2.3 mm

20 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Core: 100 strands
• Outer diameter: 1.80 mm

22 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Inner core: 60 strands
• Outer diameter: 1.70 mm

24 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Inner core: 40 strands
• Outer diameter: 1.60 mm

26 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Inner core: 30 strands
• Outer diameter: 1.50 mm

28 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Inner core: 16 strands
• Outer diameter: 1.20 mm

30 AWG

• Temperature: -65°C to +200°C
• Color: Black, Red
• Single wire diameter: 0.08 mm
• Inner core: 11 strands
• Outer diameter: 0.8 mm

Package Content

1 x 18 AWG 2 Conductor Parallel Flexible Silicone Wire Cable Red-Black – 1 meter
