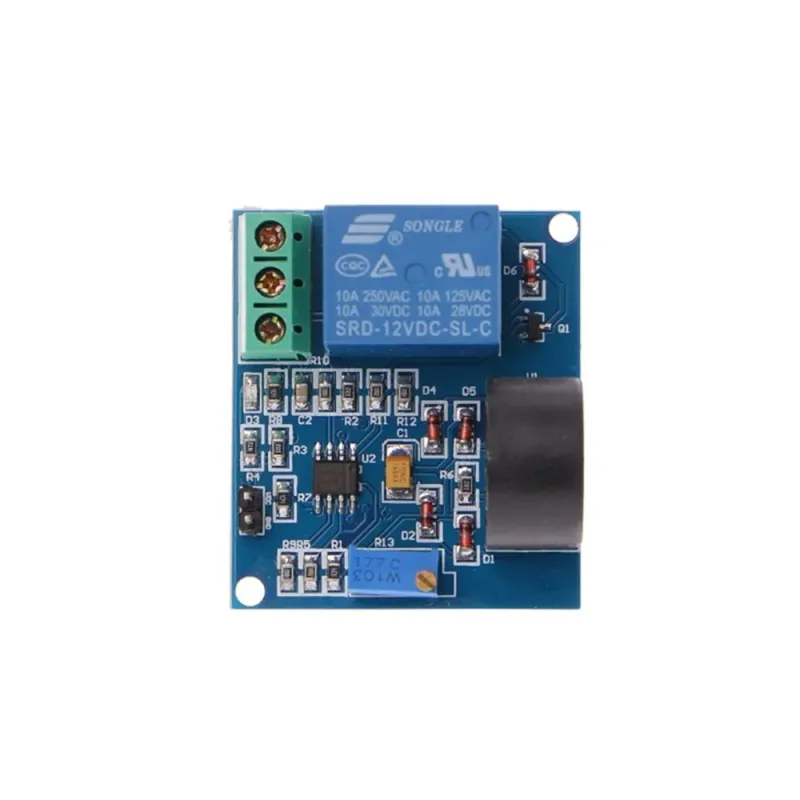

5A Overcurrent Protection Relay Module - 12V

The 5A Overcurrent Protection Relay Module (12V) is a compact and efficient circuit protection solution designed to automatically disconnect the power supply when the current exceeds a safe level. Ideal for use in automation, industrial systems, and DIY electronics projects.

Key Features:

• Automatic Overcurrent Detection: Protects connected devices by cutting off the load when current exceeds the 5A threshold
• Low Power Consumption: Operates with just 20mA current, making it suitable for energy-efficient systems
• Wide Frequency Compatibility: Works across a 20Hz to 400Hz frequency range
• Simple Integration: Switching signal output makes it easy to interface with controllers and automation circuits
• Robust Environmental Tolerance: Functions in a wide temperature and humidity range

Technical Specifications:

• Operating Voltage: DC 12V
• Current Consumption: 20mA
• Frequency Range: 20Hz – 400Hz
• Output Type: Switching signal
• Operating Temperature: -40°C to +85°C
• Humidity Range: 0% – 95% RH
• Dimensions: 4.4 x 3.8 cm (1.73 x 1.5 in)

This 12V version of the overcurrent protection module is an essential addition to any power-sensitive circuit, helping to prevent equipment damage and ensure reliable operation in critical applications.
