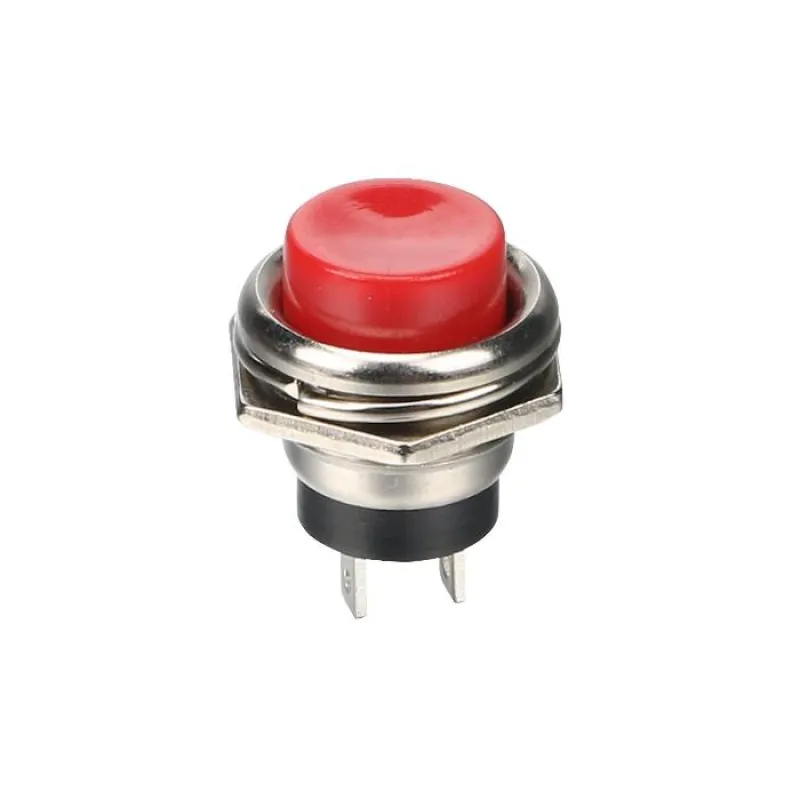

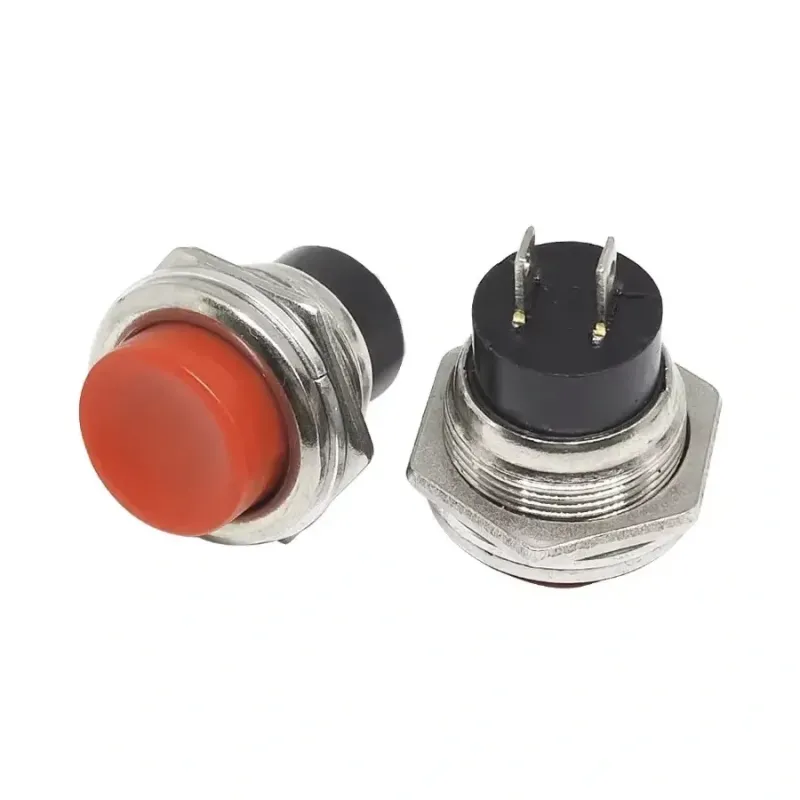

16mm Push Button Momentary ON-OFF 2A PBS-26B - RED

The PBS-26B push button is a simple but important component used to turn electrical devices on and off.As long as the Spring Button is pressed, the signal will be triggered, when you stop pressing the button, the signal will be cut off. It is an ideal instant push button for your electronic applications.

Characteristics:

• Button type: Start OFF - (ON)
• Number of contacts: 2
• Current and voltage: 2A, 250V
• Fixation: None

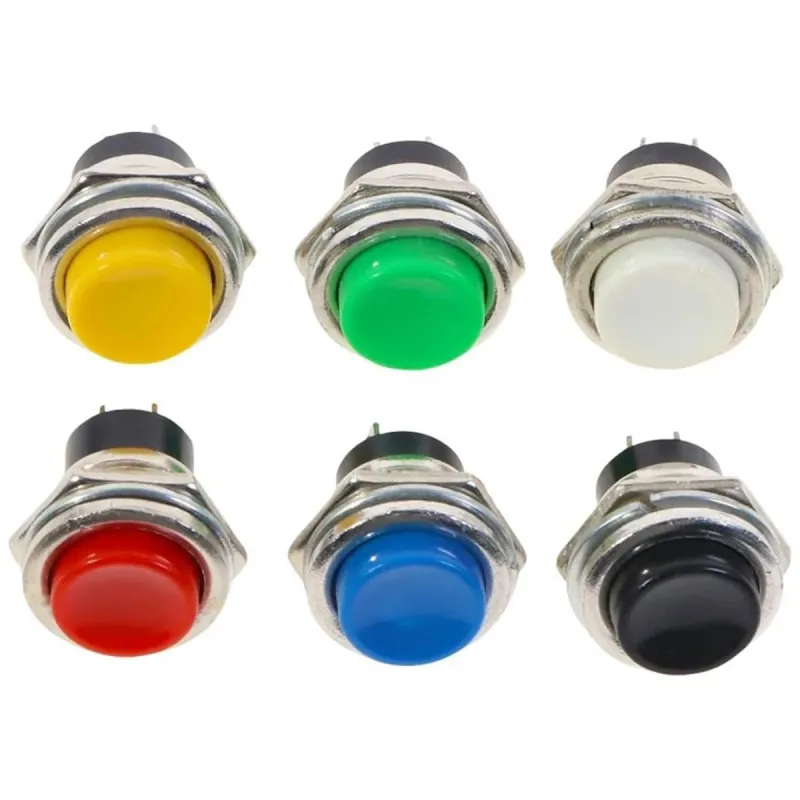

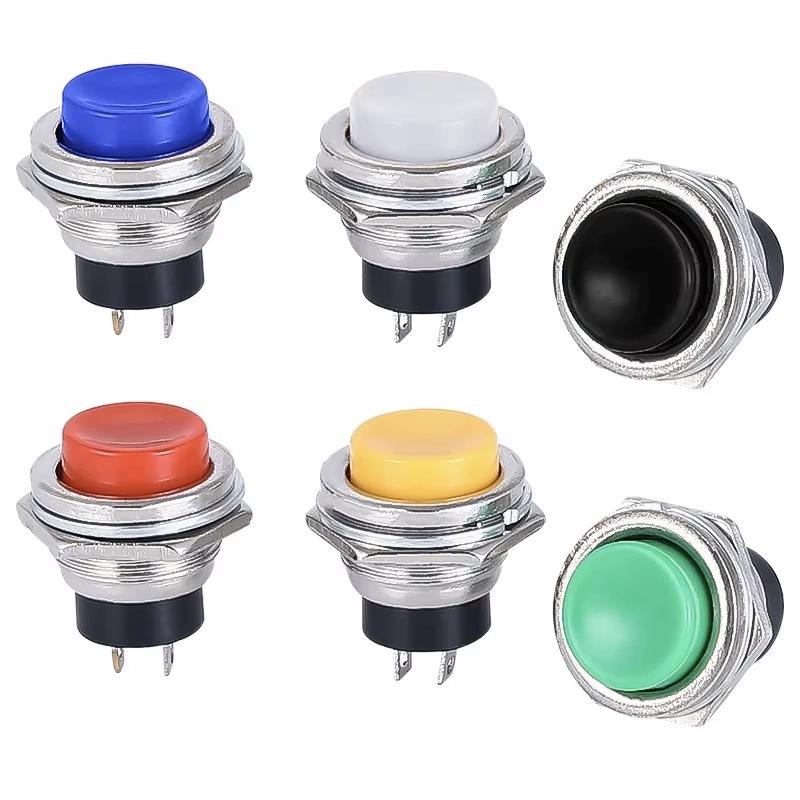

• Colors: Blue/Red/Green/Black/Yellow/White
• Backlight: no
• Temperature range:  -25℃~+85℃
• Working life, cycles:  50,000

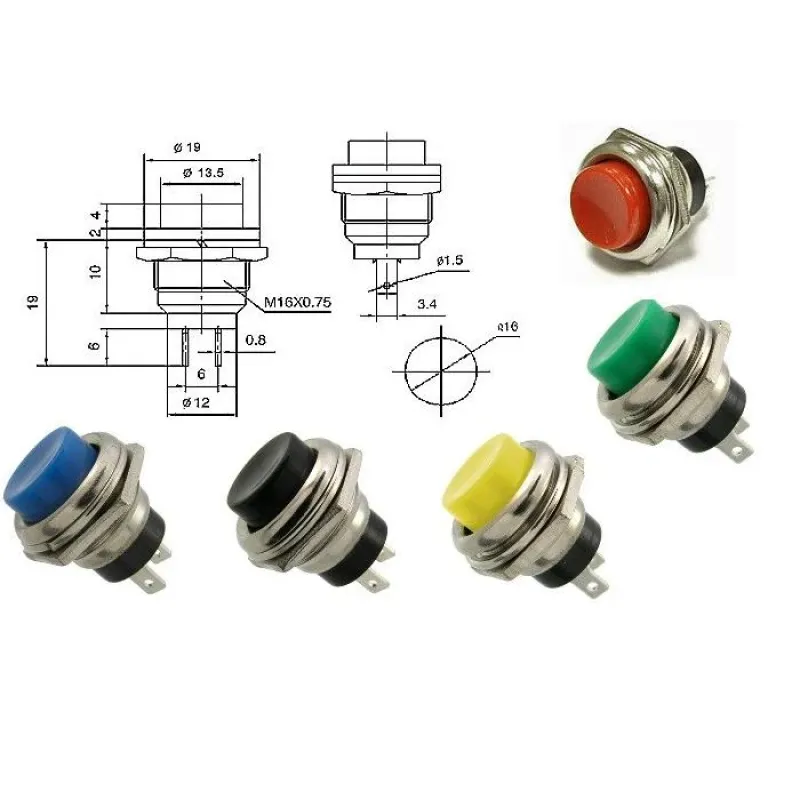

• Mounting diameter:  16mm
• Material: metal body
• Contact pattern:  SPST
•
